Steel Locking Carabiners Price range: $15.00 through $40.00Select options

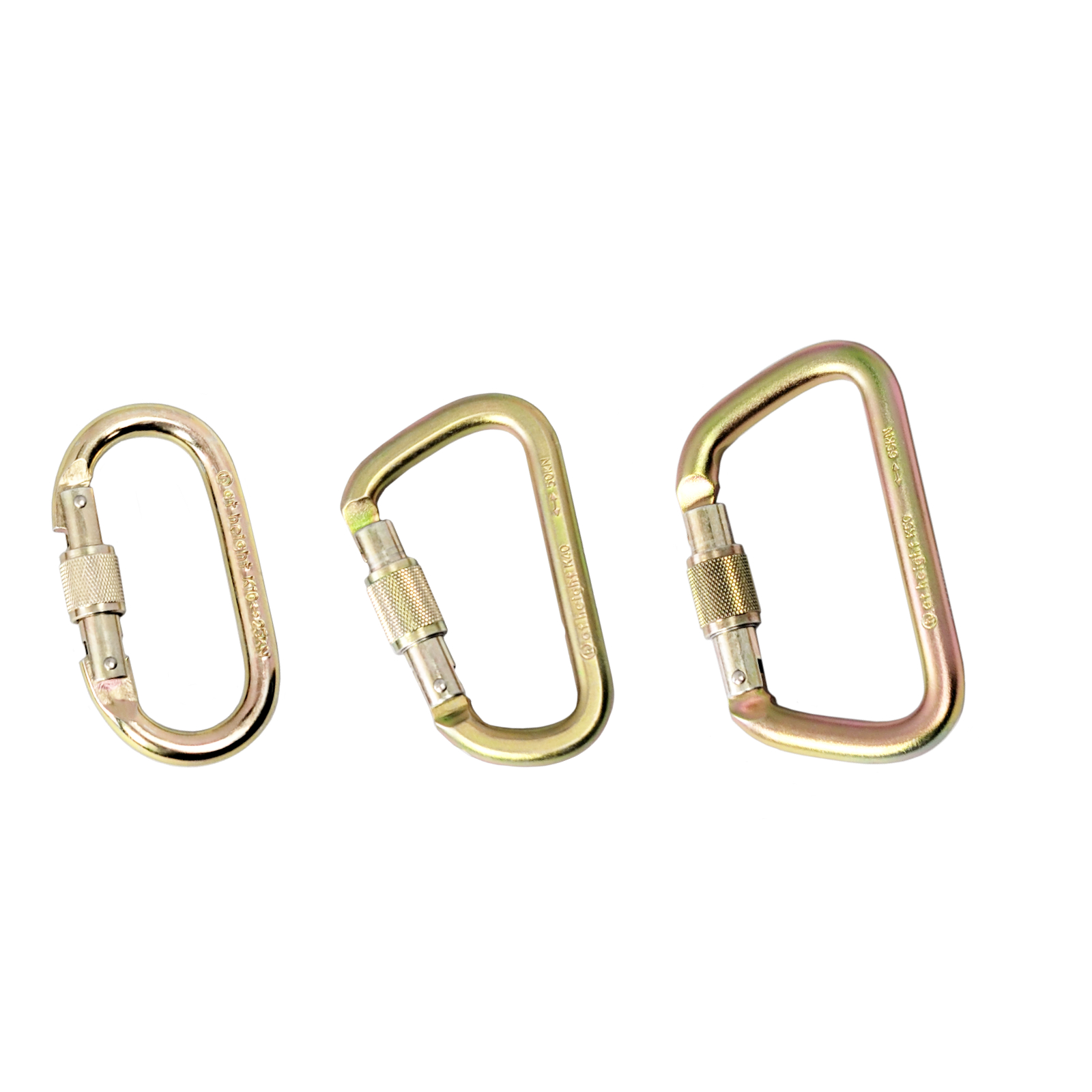

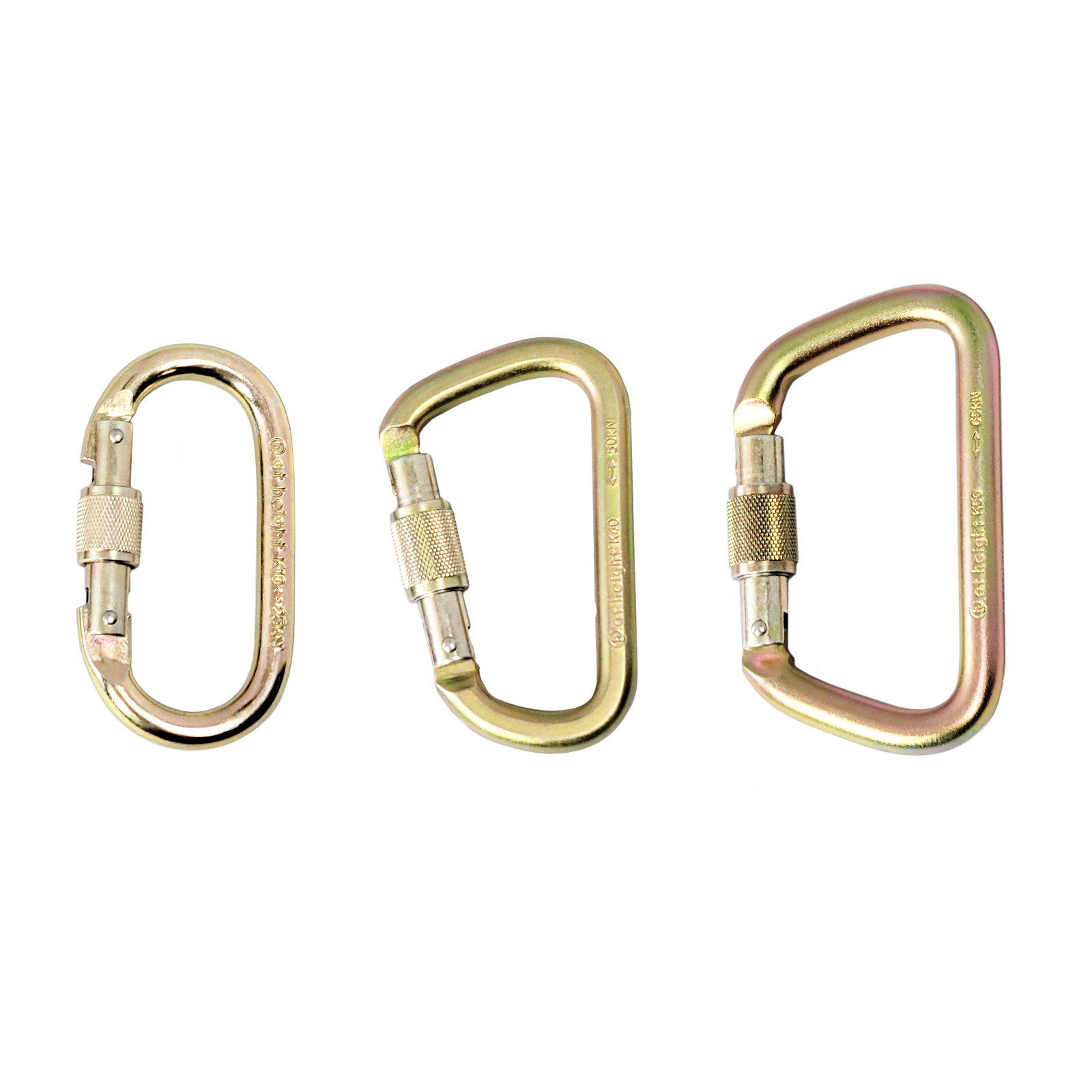

Steel Locking Carabiners
Price range: $15.00 through $40.00
Steel Locking Carabiners for Winch Rigging

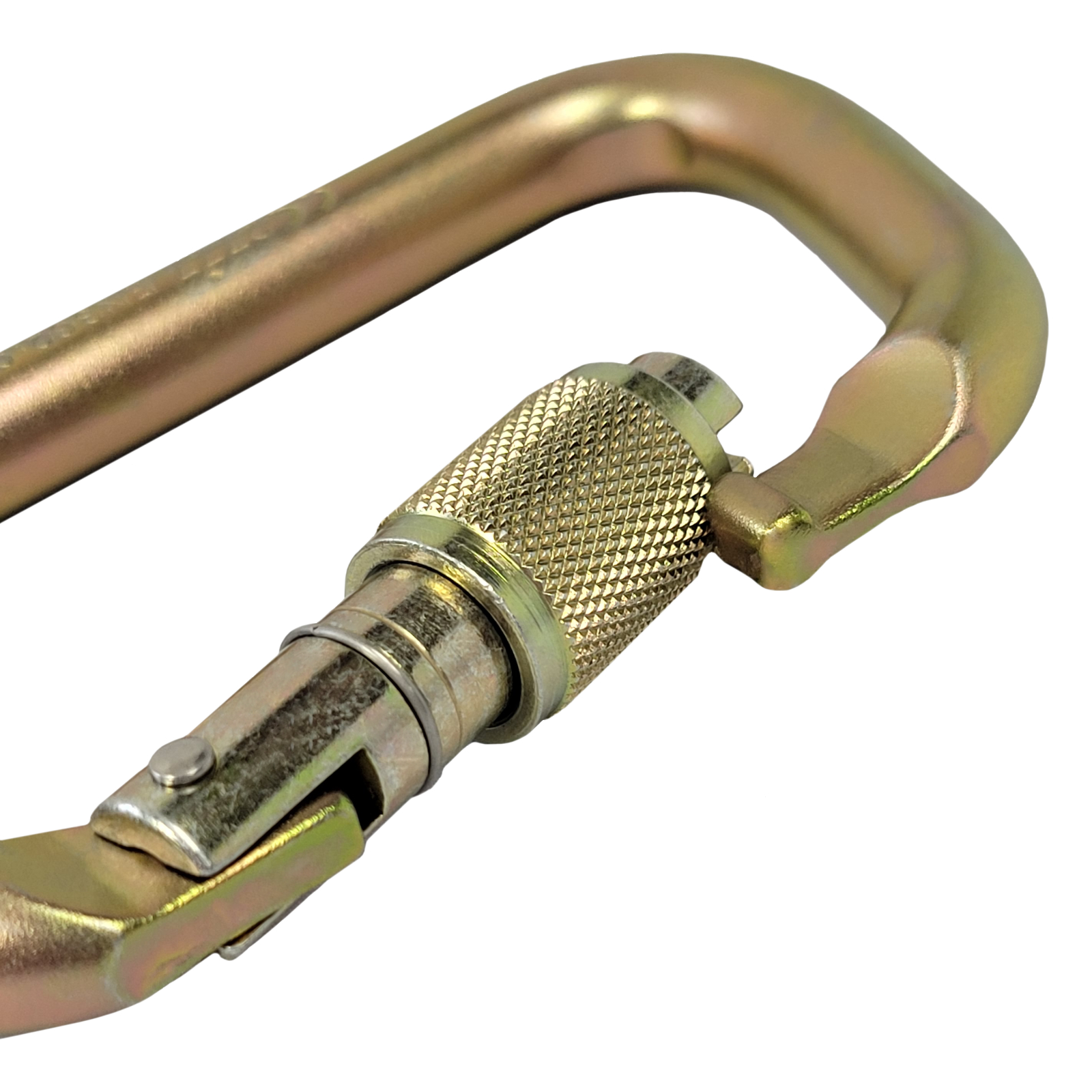

These steel locking carabiners provide versatile connection points for compatible Portable Winch rigging systems. The screw-gate locking design helps secure compatible attachments such as pulleys, polyester slings, and hooks.
Versatile Rigging Connections
Use a locking carabiner to connect a pulley to a suitable anchor, attach a polyester sling to a vehicle or anchor point, join compatible rigging components, or create another approved connection for the application.
Select the Correct Capacity
Carabiners are available with different minimum breaking strengths. Always select a carabiner based on the working load, rigging configuration, and required safety factor for the job. Never use a carabiner outside its rated application.
Important: Inspect the carabiner, gate, and locking mechanism before every use. Follow the manufacturer’s specifications and rigging instructions.
Related products
-
PCW5000 Molded Transport Case
$295.00
Technical Specifications
Steel locking carabiners for Portable Winch rigging and attachment applications. Screw-gate locking design helps connect compatible pulleys, slings, hooks, and other properly rated components.

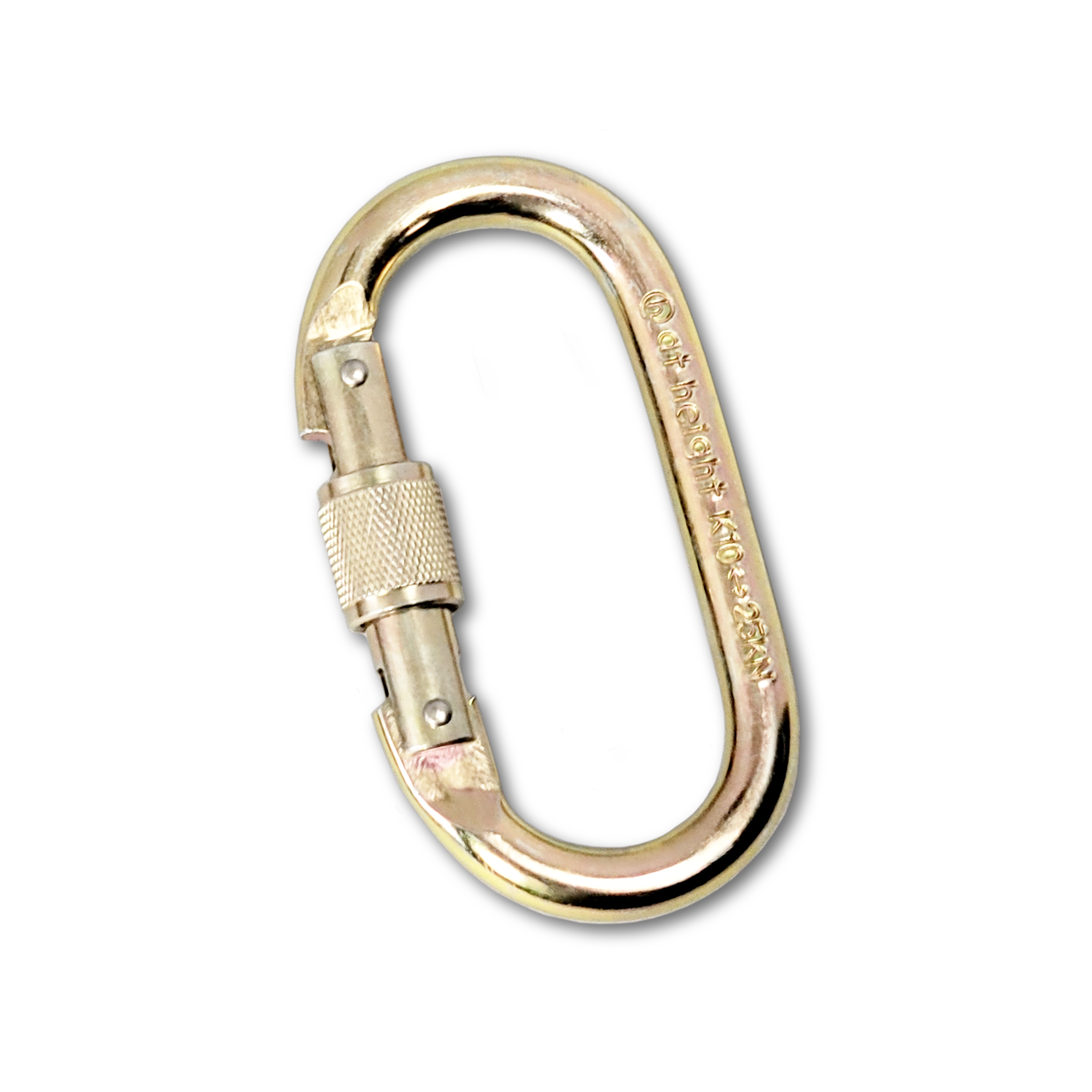

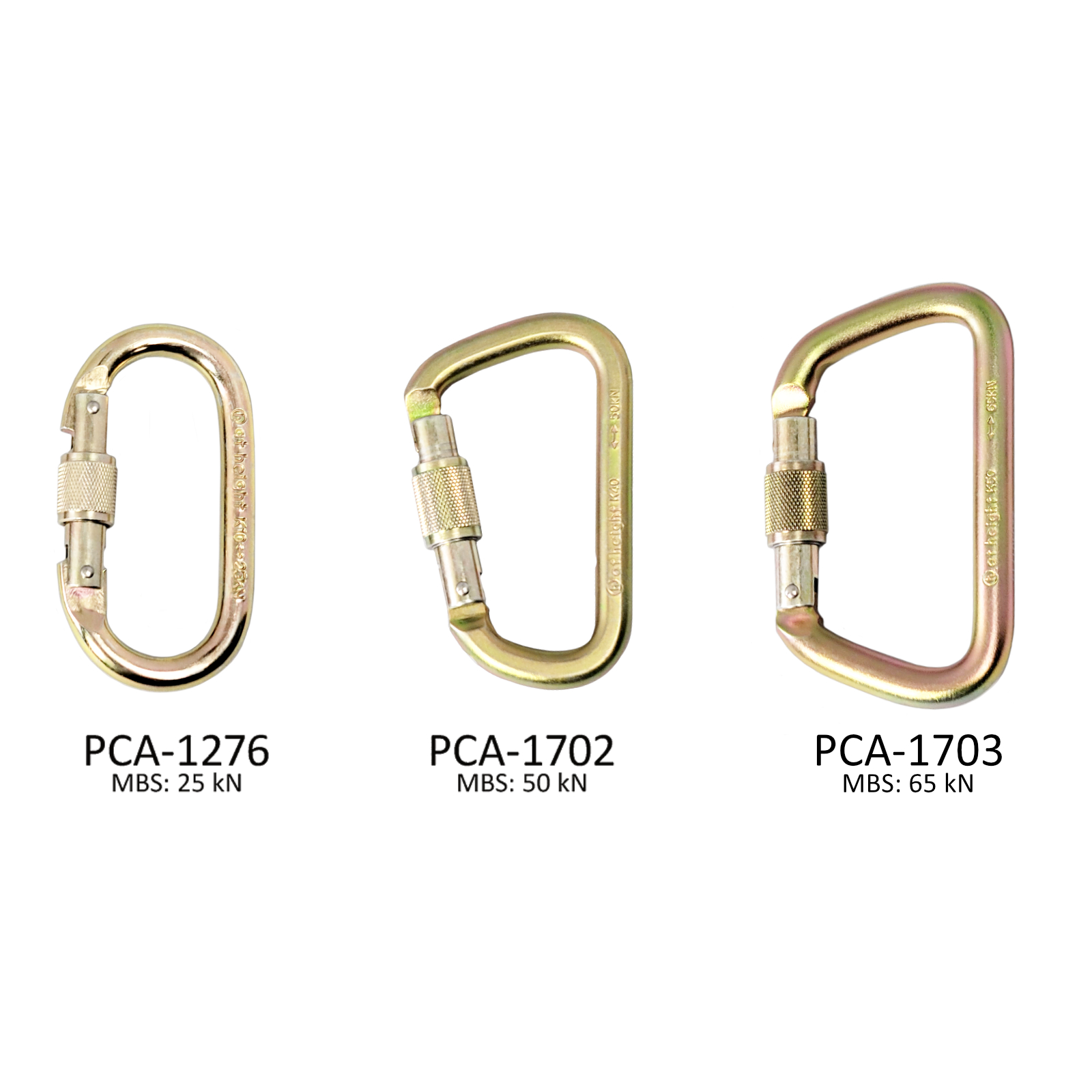

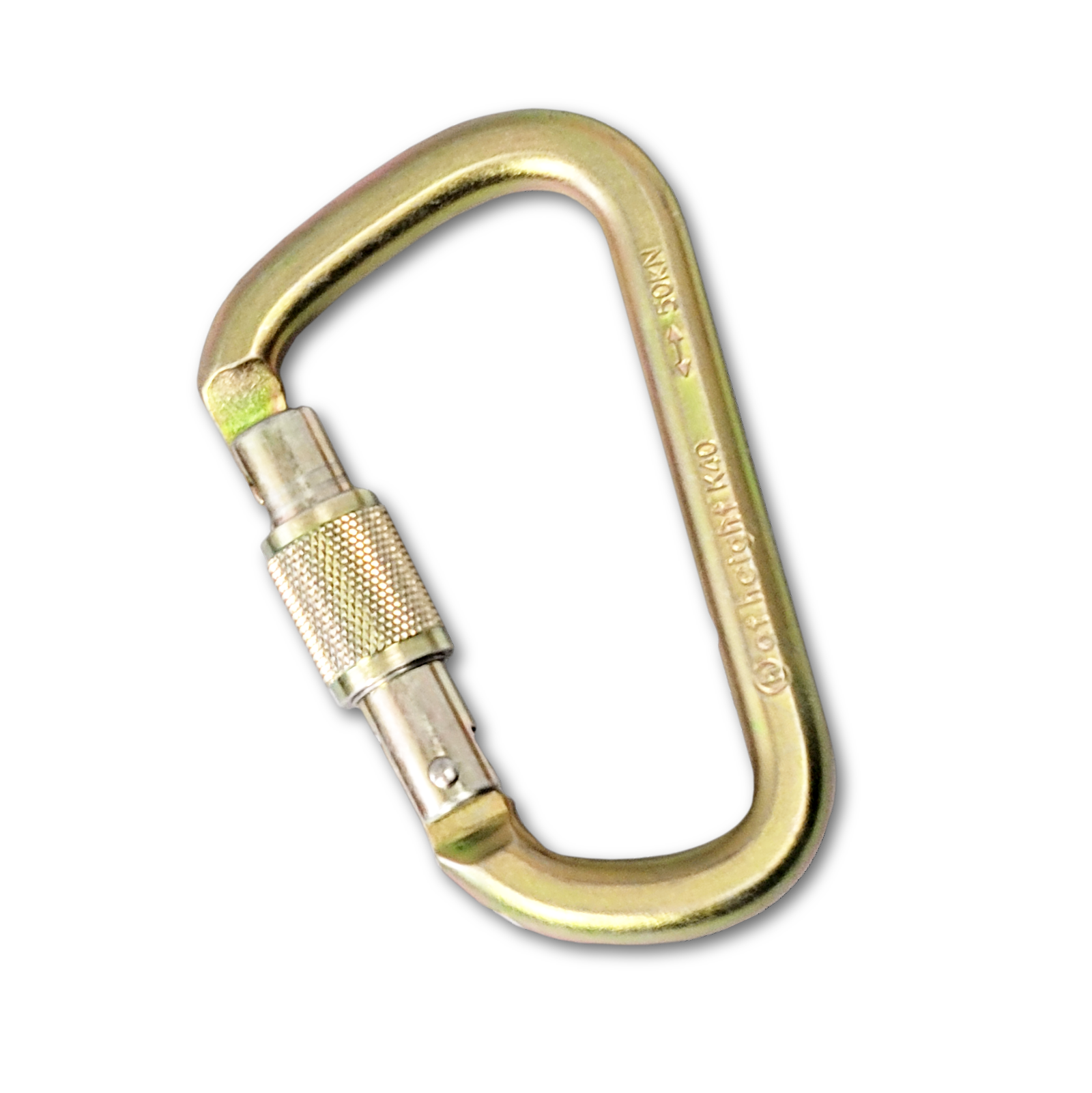

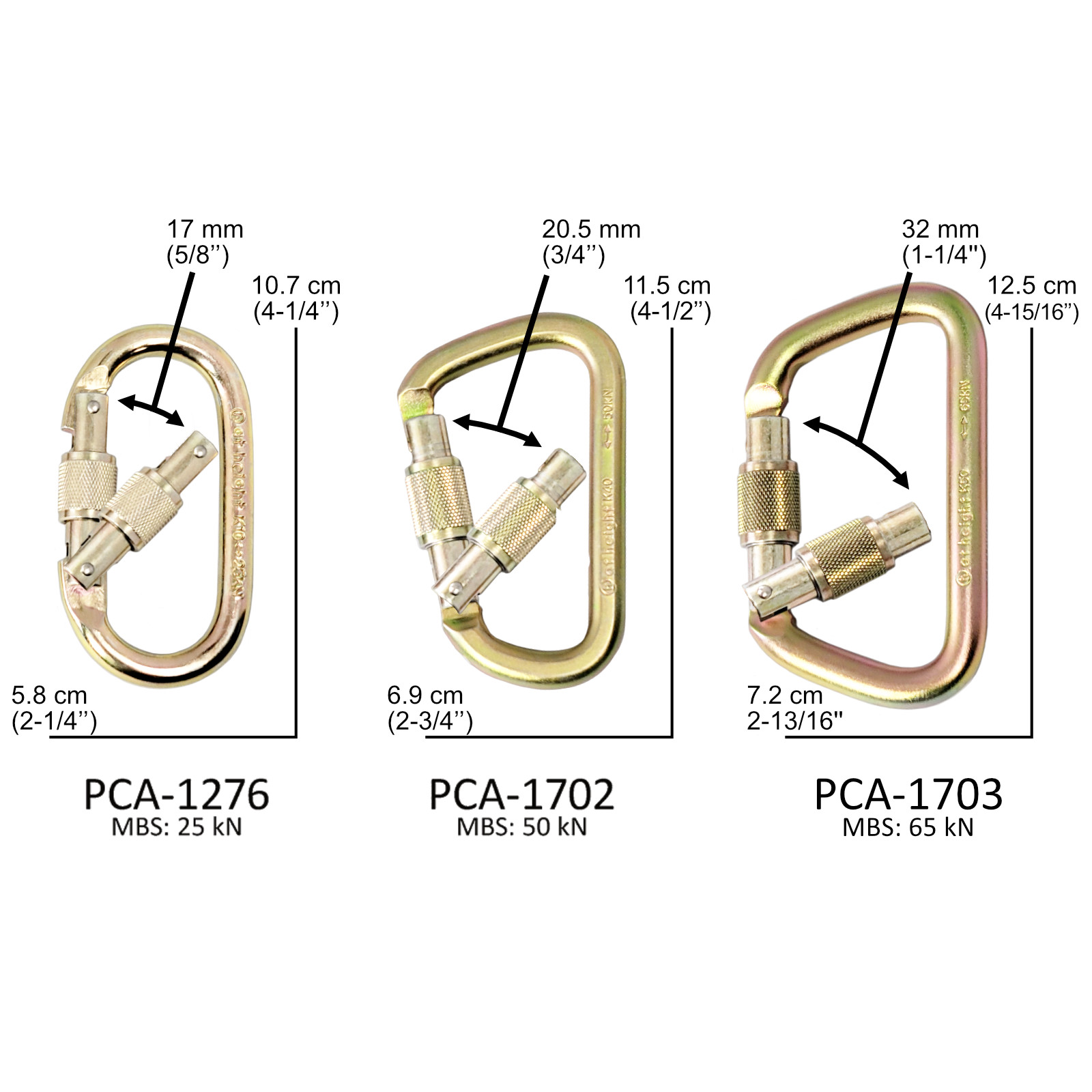

MBS DIAMETER LENGTH WIDTH OPENING WEIGHT MATERIAL CERTIFICATION PCA-1276 25 kN (5,620 lb) 3/8” 4-1/4” 2-1/4” 5/8” 0.44 lb Zinc plated steel and high-quality anodized aluminium CE PCA-1702 50 kN (11,240 lb) 1/2” 4-1/2” 2-3/4” 3/4” 0.55 lb PCA-1703 65 kN (14612Â lb) 1/2” 4 15/16” 2 13/16” 1 1/4” 0.56 lb *Portable Winch carabiners have different minimum breaking strengths, which are observed during a destructive test. The force exerted through a block and tackle system places significant stress on the carabiners at each end. To ensure a safe operation, it is essential to consider an adequate safety factor.
*Refer to the table to find out the safety factor of each carabiner and select the correct one based on your use and strength you need it to hold.Â
Learn more on the their breaking strength here.*SECURITY FACTORS Load weight (KG) PCA-1276 ( 25 KN ) PCA-1702 ( 50 KN ) PCA-1703 ( 65 KN ) 250 (550 LB) 10.2 20.4 26.5 500 (1,000 LB) 5.1 10.2 13.3 750 (1,650 LB) 3.4 6.8 8.8 1,000 (2,200 LB) 2.6 5.1 6.6 2,000 (4,400 LB) 1.3 2.6 3.3 3,000 (6,600 LB) N/A 1.7 2.2
